Fiber Ürün Grubu

Innova Teknoloji olarak fiber uygulamalardaki ürünleriyle marketin lider firmalarından olan Thorlabs, NKT Photonics, Avantes ve Edmund Optics firmalarının Türkiye temsilciliğini yapmaktayız.
Fiber Ürün Grubu.

Optik Fiber

Tüm optik fiber ve fiber optik bileşenleri serisi burada sunulmaktadır. Buna, standart stok kalemleri olarak sektör lideri çıplak optik fiber ve fiber optik ara kablo seçeneklerimiz de dahildir.Ayrıca kolimatörler, polarizasyon kontrolörleri, fiber optik kuplörler, WDM'ler, sirkülatörler ve zayıflatıcıların yanı sıra optik fiber ve fiber bileşenlerini sonlandırmak, incelemek ve temizlemek için gereken tüm araç ve malzemeleri içeren geniş bir optik fiber bileşenleri serisi de mevcuttur.

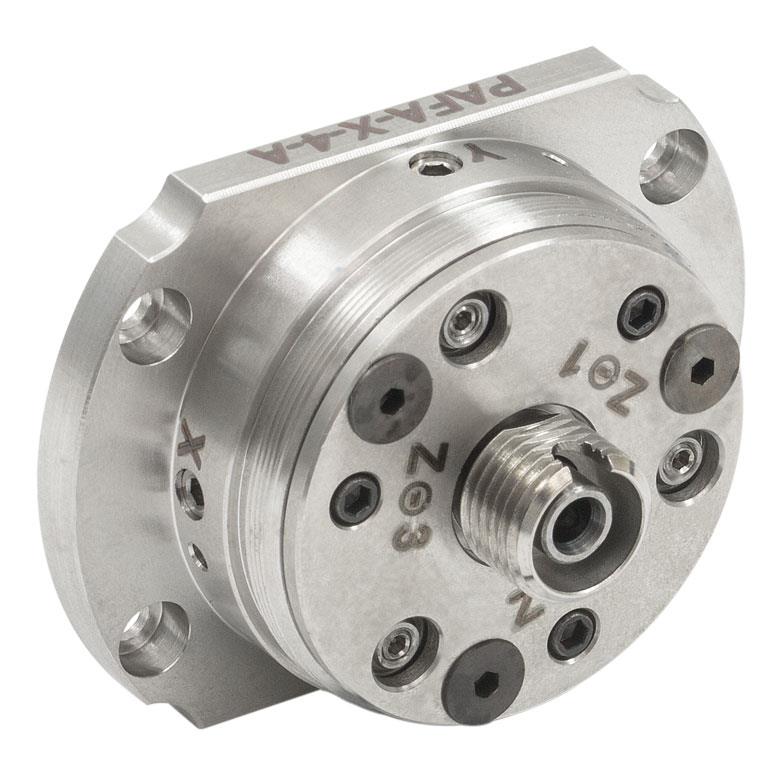

Thorlabs Fiber Ürünler

Fiber Fusion Splicers

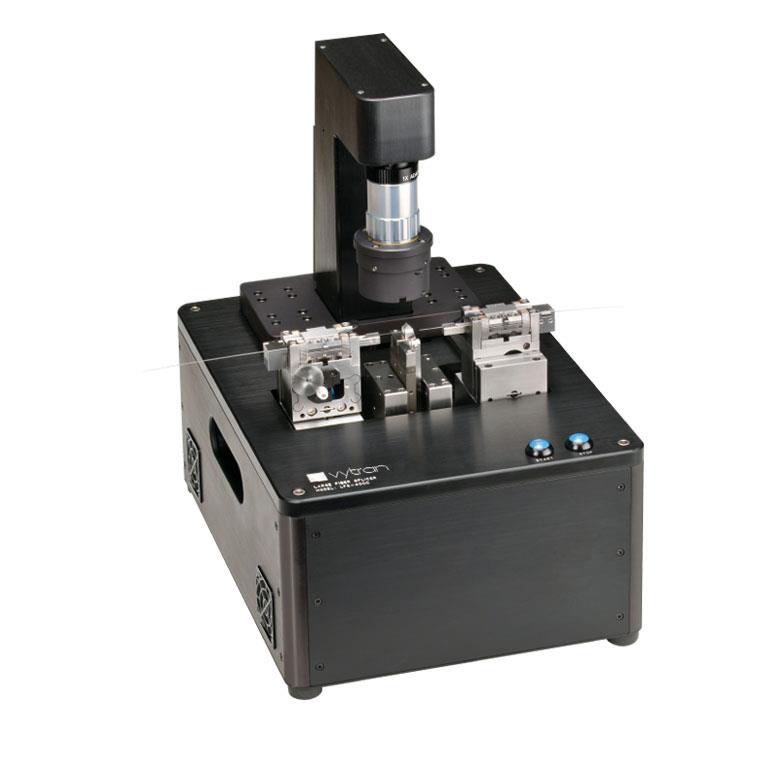

Processors

Optical Fiber

& Patch Cables

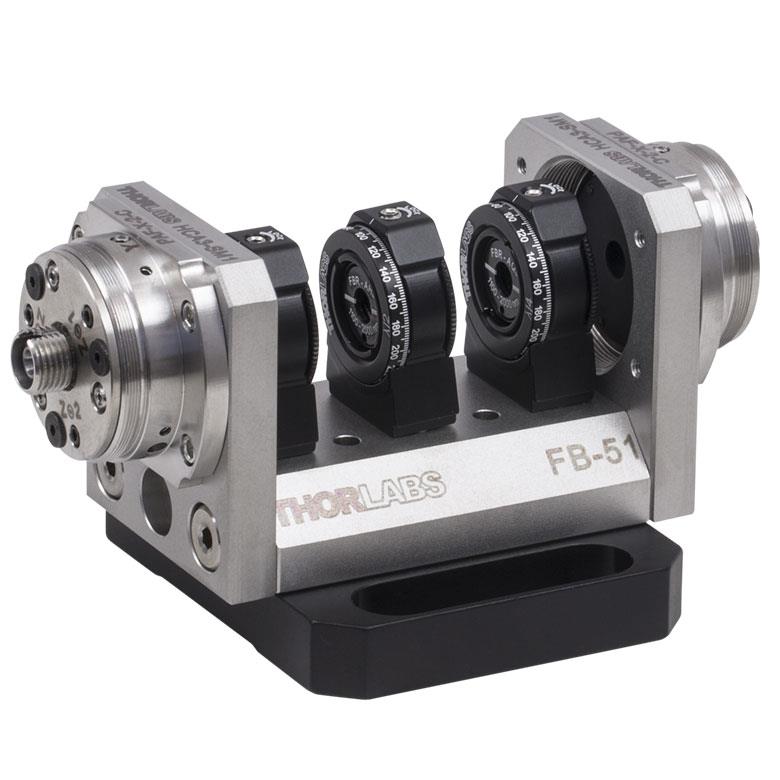

Fiber

Optomechanics

Fiber

Components

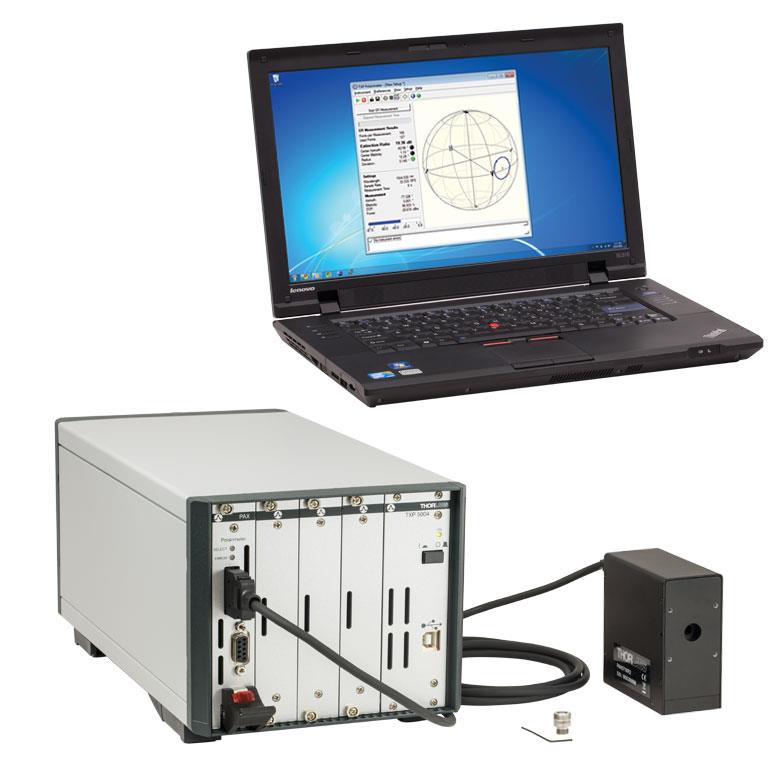

Fiber Test

& Measurement





NKT PHOTONICS Ytterbium fiber gain modules

aeroGAIN-BASE

high power ytterbium fiber gain modules

aeroGAIN-ROD

high-power ytterbium rod fiber gain modules

aeroGAIN-BASE, yüksek performanslı iterbiyum fiber kazanç modülleridir. Ultra hızlı darbeli fiber lazerlerin endüstriyel üreticileri için tasarlanmıştır veya bunları yüksek güçlü bilimsel kurulumlara kolay bir giriş olarak kullanabilirsiniz.

Bir tohum kaynağına kolay ekleme için tüm modülleri isteğe bağlı 10 veya 15 µm adım indeksli tek modlu fiber girişiyle donattık. Endüstri lideri DC-200/40-PZ-Yb'miz olan gain fiber, endüstrinin en büyük tek modlu MFD'sine sahiptir.

aeroGAIN-ROD modülü, ultra hızlı darbeli lazerler için en üstün yüksek güçlü fiber amplifikasyon modülüdür. 3300 µm2 mod alan alanı ve yüksek pompa emilimi sayesinde, daha önce yalnızca katı hal konfigürasyonlarında mevcut olan güç kullanımını sağlar.

Sağlam alüminyum gövde, modülün OEM entegrasyonu ve bilimsel laboratuvar kurulumları için taşınmasını ve monte edilmesini kolaylaştırır.

Key Features

High power with low nonlinearity

Truly single-mode polarized system

Excellent pointing stability

10 or 15 µm step-index fiber input

Easy thermal management

­Robust industrial construction

Key Features

Diffraction-limited beam quality

High peak power damage threshold

­Compact format

High NA pump cladding

Optimized for 1030-1040 nm range

 PM and non-PM amplification

 aeroGAIN BASE 1.1 Datasheet

 aeroGAIN BASE 1.2 Datasheet

 aeroGAIN BASE 1.3 Datasheet

 aeroGAIN ROD Datasheet

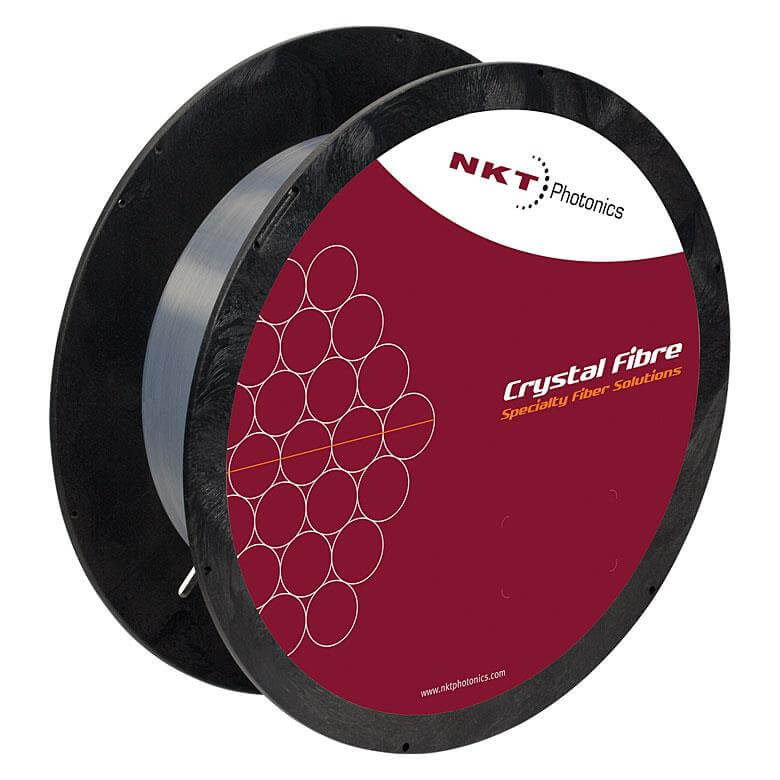

NKT PHOTONICS Photonic Crystal Fibers

Double clad

fibers

Hollow core photonic

crystal fibers

Nonlinear photonic

crystal fibers

Nonlinear photonic crystal fibers

LMA photonic

crystal fibers

Large Mode Area photonic crystal fibers

LMA PM photonic

crystal fibers

Large Mode Area PM photonic crystal fibers

İterbiyum katkılı ve tülyum katkılı çift kaplı fiberlerimiz dünyadaki en büyük tek modlu çekirdekleri sunar. Pompa çekirdeği/iç kaplamanın yüksek sayısal açıklığı, ucuz veya yüksek güçlü geniş alanlı emisyonlu pompalarla bile yüksek verimlilikle pompalamanıza olanak tanır.

Tek modlu sinyal, yüksek güç seviyeleri sağlamak ve doğrusal olmama durumlarını önlemek için geniş mod alanında hareket eder.

Pasif çift ve tek kaplı fiberlerimiz aktif fiberlerimizle eşleşiyor.

İçi boş çekirdekli fotonik bant aralığı fiberleri, ışığı içi boş bir çekirdekte yönlendirerek geleneksel fiber teknolojisini tersine çevirir. Bu benzersiz dalga kılavuzu algılama, görüntüleme ve ultra kısa darbe uygulamaları için idealdir.

İçi boş çekirdekli fotonik bant aralığı fiberlerimiz, doğrusal olmayan etkiler veya malzeme hasarı olmaksızın ultra kısa darbeler sağlar ve iletim üzerinde herhangi bir etki olmaksızın sıkı bükülmeyi tolere eder. İçi boş çekirdekli fiberler radyasyona karşı duyarsızdır ve zorlu radyasyon ortamları için uygundur.

Doğrusal olmayan fotonik kristal fiberlerimiz süper süreklilik üretimi ve doğrusal olmayan dalga boyu dönüşümü için optimize edilmiştir. Özel bir dağılım profili ile çok yüksek doğrusal olmayan katsayının benzersiz bir kombinasyonunu elde edersiniz.

Çeşitli yaygın pompalama lazer dalga boyları için optimize edilmiş tek modlu süper sürekli fiberler sunuyoruz. Ayrıca PCF elyaflarımızdan bazılarını hermetik olarak kapatılmış uçlara sahip modüller halinde de sunuyoruz – femtoWHITE ürün yelpazemize bakın.

Geniş Mod Alanlı fotonik kristal fiberlerimiz, kırınım sınırlı yüksek güç dağıtımı için tasarlanmıştır. Geniş mod alanı doğrusal olmayan etkileri ve maddi hasarı önler.

Standart fiberlerle geniş mod alanlarını tek modlu çalışmayla değiştirirsiniz. Geniş Mod Alanlı fiberlerimiz sayesinde geniş bir dalga boyu aralığında tek modlu çalışmaya sahip olursunuz.

Geniş Mod Alanlı fotonik kristal fiberlerimiz, kırınım sınırlı yüksek güç dağıtımı için tasarlanmıştır. Geniş mod alanı doğrusal olmayan etkileri ve maddi hasarı önler.

Standart fiberlerle geniş mod alanlarını tek modlu çalışmayla değiştirirsiniz. Geniş Mod Alanlı PM fiberlerimizle, geniş bir dalga boyu aralığında tek modlu, polarizasyonu koruyan çalışmaya sahip olursunuz.

Key Features

Single-mode with large mode area

Handles high pulse energy

High NA circular pump core

High pump absorption, no skew-rays

Excellent power handling

High reliability

Key Features

> 98% of the optical power in the core

Can be gas or particle-filled

­Ultra-low bend loss

Low Fresnel reflections at end faces

Group index close to unity

 Radiation insensitive

Key Features

High nonlinear coefficient

Bending insensitive

Key Features

Endlessly single-mode operation

Handles high powers

Low nonlinearities

Low fiber loss

Wavelength-independent MFD

Core sizes from 5 to 25 microns

Key Features

Endlessly single-mode operation

Handles high powers

Low nonlinearities

Low fiber loss

Wavelength-independent MFD

Polarization-maintaining

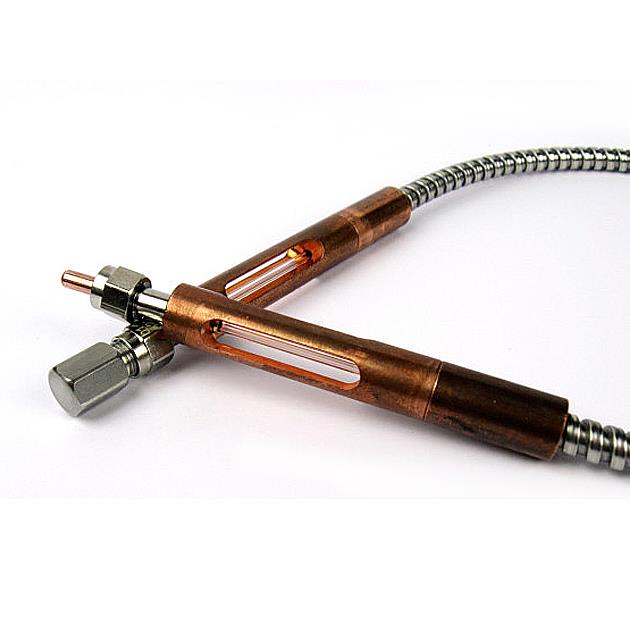

NKT PHOTONICS aeroGUIDE – broadband single mode patch cords

aeroGUIDE

AeroGUIDE geniş bant tek modlu bağlantı kabloları, optik ışın aktarımı ve dağıtımı için

tasarlanmış popüler Geniş Mod Alanı (LMA) fiberlerimizi temel alır.

LMA fiberlerimiz geniş bantlı tek modlu çalışma, yüksek güç kullanımı,

düşük doğrusalsızlık, üstün ışın kalitesi, düşük kayıp ve polarizasyonu

koruyan özellikler sunar. Hermetik ve sağlam bir arayüz sağlamak için fiber uçlarını kapattık

ve birleştirdik.

Key Features

Truly single-mode fiber

400-2000 nm guidance in one fiber

Sealed ends with beam expansion

Wavelength independent MFD

Pure silica fiber

PM option

aeroGUIDE-5-PM aeroGUIDE-8 aeroGUIDE-10-PM aeroGUIDE-15-PM aeroGUIDE POWER
AEROGUIDE-5-PM AEROGUIDE-8 AEROGUIDE-10-PM AEROGUIDE-15-PM AEROGUIDE POWER

Recommended wavelength range

400 – 1500 nm

MFD @ 532 nm4.8 ± 0.5 μm

Recommended wavelength range

400 – 2000 nm

MFD @ 532 nm7.2 ± 1.0 μm

Recommended wavelength range

450 – 2000 nm

MFD @ 532 nm8.4 ± 1.0 μm

Recommended wavelength range

500 – 2000 nm

MFD @ 532 nm12.2 ± 1.5 μm

Recommended wavelength range

500 – 2000 nm

MFD @ 532 nm12.2 ± 1.5 μm

aeroGUIDE Datasheet aeroGUIDE POWER Datasheet





EDMUND OPTICS FIBER OPTICS

Single Mode Fiber Optic Patchcords Single Mode Fiber Optic Patchcords
  • FC/PC, FC/APC, and Hybrid Terminated Connectors
  • Patchcords for Wavelengths from 450 – 1650nm
  • 1m and 2m Standardized Lengths Available
Polarization Maintaining Fiber Optic Patchcords Polarization Maintaining Fiber Optic Patchcords
  • FC/PC, FC/APC, and Hybrid Terminated Connectors
  • Patchcords for Wavelengths from 460 – 1625nm
  • Polarization Extinction Ratios up to 25dB
  • 1m and 2m Standardized Lengths Available
High Extinction Ratio Polarization Maintaining Fiber Optic Patchcords High Extinction Ratio Polarization Maintaining Fiber Optic Patchcords
  • FC/PC, FC/APC, or Hybrid Terminated Connectors
  • Patchcords for Wavelengths from 970 – 1625nm
  • Extinction Ratios up to 33 dB
  • Ideal for Use with 980, 1064, 1310, and 1550nm IR Lasers
Multimode Fiber Optic Patchcords Multimode Fiber Optic Patchcords
Buffered Fiber Optics Buffered Fiber Optics

UV/VIS and VIS/NIR Optical Fibers

  • High OH Content / Low OH Content
  • Fused Silica Core
  • Stepped Index / Stepped Multimode Fiber
  • Multimode Fiber
  • Ideal for Use with NIR Diode Lasers
Optical Grade Fiber Optics Optical Grade Fiber Optics
  • Superior Light Transmission
  • ESKA® Fiber Strands
  • Step Index
Fiber Optic Image Conduits Fiber Optic Image Conduits
  • Fused Glass Optical Fiber Rods with Ground and Polished Faces
  • Coherent Arrangement of Fibers Relays Images
  • Rigid Rods Bend Under Heat to Almost Any Orientation
Fiber Optic Tapers and Faceplates Fiber Optic Tapers and Faceplates
  • Coherent Arrangement of Fibers
  • Made with EMA Fibers to Absorb Light
  • Round-to-Round or Round-to-Rectangular Tapers Types Available
Fiber Optic Collimator and Focuser Assemblies Fiber Optic Collimator and Focuser Assemblies
  • Easy to Integrate
  • Models for FC/PC, FC/APC, and SMA Connections Available
  • Four Wavelength Ranges Covering 350-1600nm
Focusable Collimators Focusable Collimators
  • Can Be Coupled to Standard 0.22 NA Fiber Optic Cables
  • Two Coatings Available for UV-VIS or VIS-NIR
  • Multiple Focal Length or Aperture Options
Fiber Connector Adapters Fiber Connector Adapters
  • Female Connectors on Both Ends
  • Extend Fiber Patchcord Length
  • Brass Construction
Fiber Optic Alignment Mounts Fiber Optic Alignment Mounts
  • FC Fiber Connection
  • Two Axis Linear Movement for Precise Fiber Alignment
  • Optional Kinematic Tilt Version
  • Posts and Post Holders Required for Mounting
Fiber Optic Cutting Block Fiber Optic Cutting Block
  • Cleaves Jacketed and Unjacketed Fiber
  • Accepts Fiber up to 3300μm Diameter
  • Blade Included
Norland Index Matching Liquid (IML) 150 Norland Index Matching Liquid (IML) 150
  • 1.52 Index of Refraction at 589nm
  • Ideal for Temporary Fiber Slicing
  • 6g or 30g Preloaded Syringes





AVANTES FİBER OPTİK ÜRÜNLER

Fiber-Optic Cables

Avantes offers a wide range of fibre-optic cables, which can be manufactured in a variety of lengths and configurations to meet your needs. For common applications, a 2-metre length is sufficient. For this reason, it is our standard fibre length.

Avantes offers SMA-905 or FC/PC connectors and these can be the same or different on both ends. For some applications, special round to linear fibre cables are recommended in which a bundle of fibres configured in a round pattern on one end and a linear array on the other end. The linear array (typically 1mm in height) is aligned with the slit height of the spectrometer which is also 1mm. This fibre configuration provides maximized light throughput for applications requiring high sensitivity.

Fibre-optic cable types and diameters are recommended based on the wavelength range being measured and the sensitivity required for a measurement. In general, different fibre types can be classified. For the UV range, high OH UV/VIS fibre is used. For customers working below 240 nm in the UV, special high OHUV/VIS fibre called solarization resistant fibre (SR) is available. For longer wavelengths low OH VIS/NIR fibre is recommended. Best of both worlds can be achieved without broadband fibre, which is our standard. This gives you the combined performance of the UV, UV-SR and IR fibres.

Depending on the application requirements Avantes offers a variety of jacketing options including Kevlar reinforced PVC sleeving with PTFE inner tubing (Standard), heavy industrial chrome plated brass mono-coil, stainless steel (BX), silicone coated stainless steel mono-coil (MS), flexible chrome-plated brass outer jacket with hooked profile (ME) and other special jacketings upon request. For applications requiring high-temperature resistance, special high-temperature epoxy (HT) is available and should be specified at the time of order.

Multi-Furcated Fiber-Optic Cables

Simultaneous multi-point measurements and Avantes multi-channel spectrometers, require multi-furcated fibre-optic cables. These assemblies can function as a combiner or splitter of light, as they have multiple legs on side which converge into a single connector on the opposite side. Avantes offers virtually any combination possible, which can be adapted to your requirements.

Typical setups that require multi-furcated cables are:

  • One sampling point such as an integrating sphere, cosine corrector, or collimating lens being measured from several spectrometers (individual AvaSpecs or Multi-channel).
  • Multiple illumination fibres splitting out from one light source to different sampling points.

Various types of connectors, jacketings, and fibre sizes are available for these multi-furcated fibre cables. Contact us to configure and quote you on your specific needs.

Reflection Probes

Reflection Probes

Reflection probes are used to obtain spectral information of diffuse or specular materials. The light from a light source is sent through six illumination fibers to the sample, and the reflection is measured by a 7th fiber in the center of the reflection probe tip. The 7th fiber is coupled to a spectrometer configured to the appropriate wavelength range of interest. More illumination fibres can be added to get more energy from the light source and therefore increase the reflection signal level.

For measurements under an angle of 90°, the FCR-90-Option was developed. It’s a special adapter with a mirror positioned at 45° and can be easily mounted on the tip of Avantes standard reflection probes.

The FCR-COL is an adjustable UV/VIS/NIR collimating and focusing lens, which enables focusing the measurement spot at an extended distance.

Reflection Probes

Reflection Probes with Reference

In order to correct fluctuations and drift from your light source, periodic referencing is required. To facilitate this, Avantes offers this series of reflection probes with a self-referencing feature.

The light coming from the light source is bundled into 12 fibres, which are split into two 6-fibre bundles. One of these bundles is carried to the probe end for sample measurement and the other bundle of 6 are directed to a white reflection tile built into the probe to provide a light source reference. This reference leg is connected to a slave spectrometer channel dedicated to light source referencing or may be routed to a single channel via a fibre-optic (contact a Sales Engineer about this special configuration). On the measurement side, the probe end has a seventh fibre, which reflects light back to the master spectrometer channel.

Reflection Probes

Reflection Probes with Multiple Legs

For some measurements, a reflection probe is needed that can be coupled to two spectrometers and a light source. A good example is a reflection measurement in the UV/VIS and NIR range. For these situations, Avantes offers our reflection probes with multiple legs.

The light from a light source is coupled into a fibre bundle, consisting of 17 illumination fibres which transport the light to the end of the probe. The reflected light is uniformly reflected into the two read fibres, each of which is connected to a spectrometer. For measurements under a 90° angle, the FCR-90-Option has been developed. It is an adapter with a mirror mounted at 45° and can be easily mounted to the tip of these reflection probes. To accurately focus a small measurement spot from a higher distance, the FCR-COL adjustable US/VIS/NIR collimating/focusing lens is available and can be mounted to the tip of these probes.

Reflection Probes with Small Tips

For some medical and semiconductor applications, a small/very small tip is advisable for conducting reflectance measurements. Avantes offers two standard diameters of small-tip reflection probes: 1.5 and 2.5mm, with each tip generally being 100mm in length.

The probe is configured with an illumination leg with six 200 μm fibre cables which connects to a fibre-coupled light source and a single 200 μm read fibre cable to measure the reflection via connection to a spectrometer.

A special angled fibre holder (AFH-15) is available for the 1.5mm diameter reflection probe. This device enables reflection measurements under angles of 15, 30, 45, 60, 75, and 90 degrees.

Depending on the application requirements Avantes offers a variety of jacketing options including Kevlar reinforced PVC sleeving with PTFE inner tubing (Standard), heavy industrial chrome plated brass mono-coil, stainless steel (BX), silicone coated stainless steel mono-coil (MS), flexible chrome-plated brass outer jacket with hooked profile (ME) and other special jacketings upon request. For applications requiring high-temperature resistance, special high-temperature epoxy (HT) is available and should be specified at the time of order.

Reflection Probes for Powders and Thick Fluids

For effective measurement of reflection in powders and thick fluids, Avantes offers this specially designed series of reflection probes.  The probes allow the user to simply dip the probe into the powder or thick fluids to conduct the measurements.

The illumination leg of the probe is connected to a light source and carries light to the sample via a bundle of six fibres. At the probe tip, a 45-degree fused silica window illuminates the sample and collects the indirect reflections which are carried by a single fibre to the spectrometer. The 45-degree angle of the probe prevents the measurements of direct back reflection from the window, thus improving the dynamic range of your measurement.

Industrial Reflection Probes

1/2" Industrial Reflection Probes for Powders and Thick Fluids

For industrial applications that need reflection measured in thick liquids or powders, this probe is the ideal choice. The stainless steel cylinder and probe end make it withstand extreme situations. The tip is exchangeable and waterproof. Optionally, PEEK or Hastelloy® C276 can be used as tip material.

The light enters from the light source through six bundled fibers to the probe end, where it lights the material to be analyzed through a sapphire window angled at 45 degrees. This angle prevents any light from being reflected from the window. The light is selectively reflected through the seventh fiber in the probe. This fiber leads to the connected spectrometer.

RPH-1 Reflection Probe Holder

The RPH-1 is to be used with our standard reflection probes, which are 6.5mm in diameter. The holder enables positioning of the probe tip in two angles: 45 degrees for diffuse reflection measurements and 90 degrees (normal to sample) for specular reflection. This assembly is mostly used to facilitate colour measurements.

A setscrew is included to mount the probe into position. The RPH-1 is a small device, measuring only 60 by 30 by 30 millimetres. It’s made of black anodized aluminium.

Transmission Dip Probes

Transmission dip probes are used for online and inline absorbance measurements in fluids. When dipping or permanently mounting the probe end into the fluid, absorbance can be measured.

A standard SMA-905 connector is used to couple light into a fibre bundle, typically consisting of six fibres (other configurations available upon request). The light is transmitted to the probe end, where it crosses the predetermined gap and is then reflected against a diffuse white reflective material back onto the receiving read fibre, which is coupled to a spectrometer on the second leg of the probe.

The read fibre is placed in the center of the illumination fibre bundle to provide the best collection efficiency for the probe. Both bundles are housed in flexible stainless steel jacketing and the probe tip is also made of stainless steel.  At the mid-point of the assembly a ferrule is used to split the fibres into their respective legs (illumination and read) which are terminated in SMA-905 connectors.
